Quotes - Engineering - SalesA-1660-4-4-O-BR
Thermal Transfer Products| Product | Style | Ratings | Configuration |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300PSI/300F | One Pass |
-Download
Datasheet

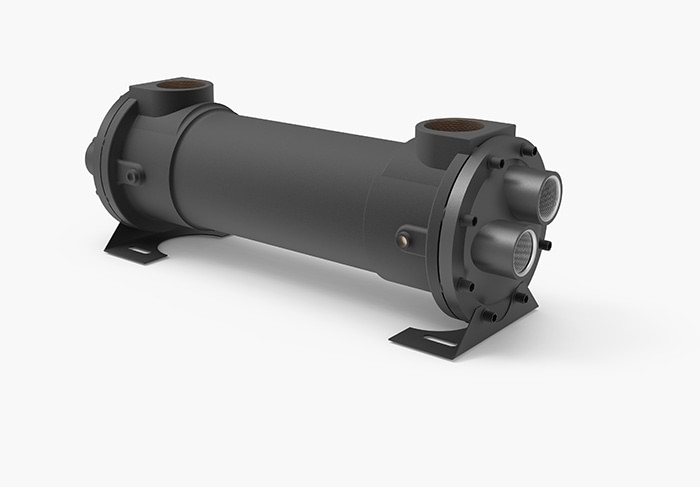

Note: Unit pictured is representative of standard unit and may not exactly depict p/n A-1660-4-4-O-BR as shown on this page.
Product Overview
Part Number:
A-1660-4-4-O-BR
Series:
1660
Brand:
Thermal Transfer
Configuration & Size
Size:
8" Diameter Shell x 60" Tube Length
Connections:
3" NPT Shell Side / 4" NPT Tube Side
Baffle Spacing:
4" Baffles
Cooling Tube Diameter:
0.25" Tubing
Tube Side Passes:
One Pass
Materials of Construction
- Tubes: Copper
- Hub & Tubesheet: Brass
- Shell: Brass
- End Bonnets: Cast Iron
- Zincs: Optional
- Namplate: Aluminum
Rating
- Maximum Shell Pressure: 300 PSI
- Maximum Tube Side Pressure: 150 PSI
- Maximum Temperature: 300F
