Quotes - Engineering - SalesB-1202-C4-O-CN-Z
Thermal Transfer Products| Product | Style | Ratings | CONFIGURATION |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 250PSI/350F | One Pass |
-Download
Datasheet

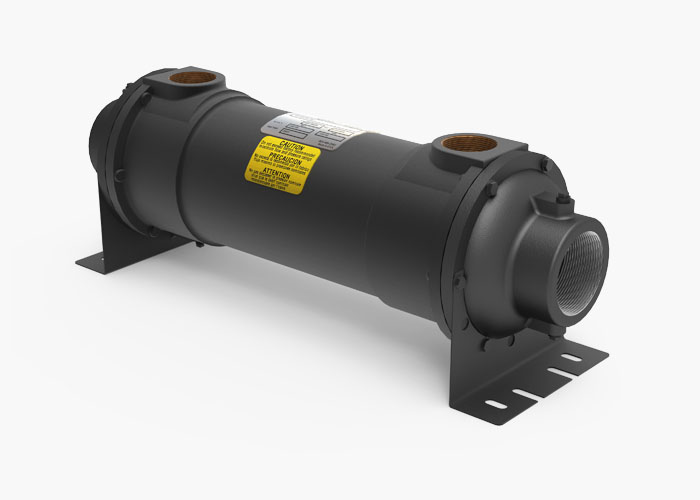

Note: Unit pictured is representative of standard unit and may not exactly depict p/n B-1202-C4-O-CN-Z as shown on this page.
Product Overview
Part Number:
B-1202-C4-O-CN-Z
Series:
B-1202
Brand:
Thermal Transfer
Configuration & Size
Size:
6" Diameter Shell x 18" Tube Length
Connection Type:
NPT Shell Side / NPT Tube Side
Baffle Spacing:
4.5" Baffles
Cooling Tube Diameter:
0.25" Tubing
Tube Side Passes:
One Pass
Materials of Construction
- Shell: Steel
- Hub & Tubesheet: Brass
- Tube Material: CuNi
- End Bonnets: Cast Iron
- Zinc Anodes: Included
- Namplate: Aluminum
Rating
- Max Shell Pressure: 250 PSI
- Max Tube Pressure: 150 PSI
- Max Temperature: 350F
