Quotes - Engineering - SalesCA-2096-6-6-O
Thermal Transfer Products| Product | Style | Ratings | CONFIGURATION |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 150PSI/300F | One Pass |
-Download
Datasheet

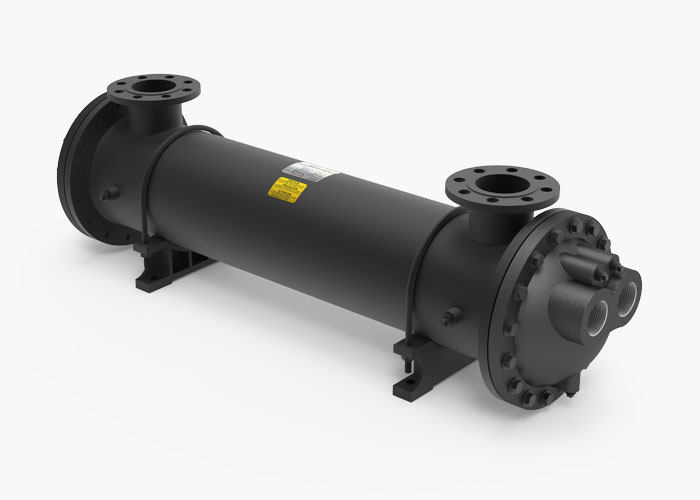

Note: Unit pictured is representative of standard unit and may not exactly depict p/n CA-2096-6-6-O as shown on this page.
Product Overview
Part Number:
CA-2096-6-6-O
Series:
CA-2096
Brand:
Thermal Transfer
Configuration & Size
Size:
10.5" Diameter Shell x 96" Tube Length
Baffle Spacing:
6" Baffles
Cooling Tube Diameter:
0.375" Tubing
Tube Side Passes:
One Pass
Materials of Construction
- Tubes: Copper
- Tubesheet: Cast Iron
- Shell: Steel
- End Bonnets: Cast Iron
- Zincs: Optional
- Namplate: Aluminum
Rating
- Max Shell Pressure: 150 PSI
- Max Tube Side Pressure: 150 PSI
- Max Temperature: 300F
