Thermal Transfer Products| Product | Style | Ratings | Configuration |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 250PSI/350F | One Pass |
-Download
Datasheet

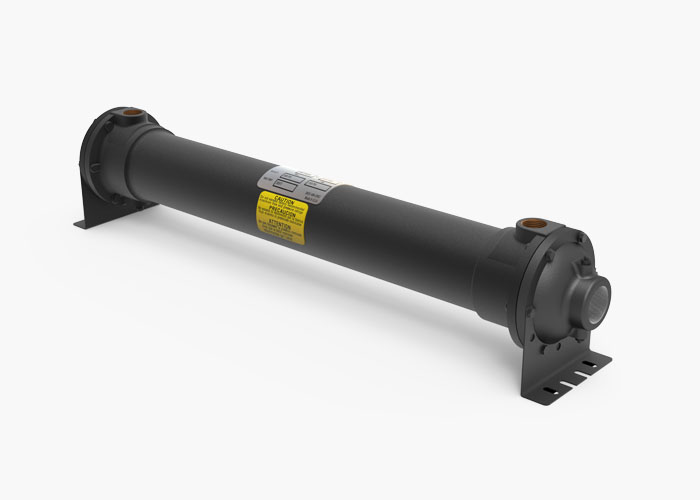

Note: Unit pictured is representative of standard unit and may not exactly depict p/n AB-404-A4-O as shown on this page.
Description
The AB-404-A4-O is a shell and tube 1-pass heat exchanger with integral hub design. This unit has a Brass hub, 2.12-inch diameter x 36" long shell, 0.25-inch Copper tubes, and Cast Iron end bonnets. This unit has a maximum working shell pressure of 250 PSI, tube pressure of 250 PSI, and maximum operating temperature of 350F. TTP AB Series shell and tube heat exchangers are designed specifically for compressor cooling.
Product Overview
Part Number:
AB-404-A4-O
Series:
AB
Brand:
Thermal Transfer
Configuration & Size
Size:
2.12" Diameter Shell x 36" Tube Length
Connections:
NPT Shell Side / NPT Tube Side
Baffle Spacing:
1.125" Baffles
Cooling Tube Diameter:
0.25" Tubing
Tube Side Passes:
1 Pass
Optional Mounting Brackets:
AB-404-A4-O-MB
Materials of Construction
- Tubes: Copper
- Hub & Tubesheet: Brass
- Shell: Brass
- End Bonnets: Cast Iron
- Namplate: Aluminum
Max Rating
- Shell Pressure: 250 PSI
- Tube Side Pressure: 250 PSI
- Temperature: 350F
