HCS-614-1.3-4-F-SS

Thermal Transfer Products
Product Style Ratings Configuration
Heat Exchanger Shell & Tube 300PSI/300F 4 Pass
HCS-614-1.3-4-F-SS -Download Datasheet

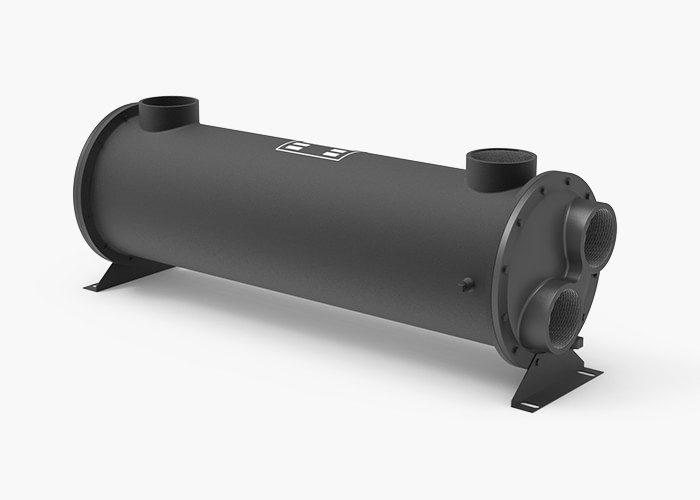

Note: Unit pictured is representative of standard unit and may not exactly  depict p/n HCS-614-1.3-4-F-SS as shown on this page.

HCS-614-1.3-4-F-SS

Description

This TTP HCS-614-1.3-4-F-SS shell and tube heat exchanger is an industrial fluid cooler from the HCS series line of coolers. Cost-effective industrial construction in a Four Pass configuration offers reliable heat transfer for a variety of industrial cooling applications, including: water, hydraulic oil, and compressed air. The fixed tubesheet design has a 3.27-inch diameter steel shell, 14-inch Stainless Steel tubes, Carbon Steel tubesheet, Cast Iron end bonnets, and optional zinc anodes. This unit has a maximum working shell pressure of 300 PSI, tube pressure of 150 PSI, and maximum operating temperature of 300F. Optional features also include 316 Stainless Steel construction or 90/10 CuNi tubing bronze bonnets, and zinc anodes considered ideal for seawater applications.

Product Overview

Part Number:
HCS-614-1.3-4-F-SS
Series:
HCS-614
Brand:
TTP / Thermal Transfer

Configuration & Size

Size:
3.27" Diameter Shell x 14" Tube Length
Baffle Spacing:
1.3" Baffles
Cooling Tube Diameter:
0.25" Tubing
Tube Side Passes:
Four Pass

Materials of Construction

  • Tubes: Stainless Steel
  • Tubesheet: Carbon Steel
  • End Bonnets: Cast Iron
  • Zincs: None
  • Namplate: Aluminum

Max Rating

  • Shell Pressure: 300 PSI
  • Tube Side Pressure: 150 PSI
  • Temperature: 300F
