1-805-484-2992
Quotes - Engineering - SalesSSC-1018-1.1-6-F
Thermal Transfer Products| Product | Style | Ratings | CONFIGURATION |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300PSI/300F | Four Pass |
-Download Datasheet

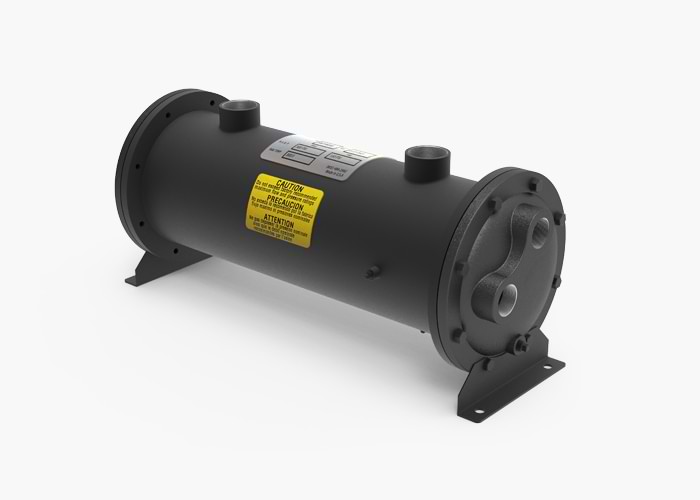

Note: Unit pictured is representative of standard unit and may not exactly depict p/n SSC-1018-1.1-6-F as shown on this page.
Product Overview
Part Number:
SSC-1018-1.1-6-F
Series:
1018
Brand:
Thermal Transfer
Configuration & Size
Size:
5" Diameter Shell x 18" Tube Length
Connection Style:
1.5" Shell Side / 1" Tube Side
Connection Type:
1.5" Shell Side / 1" Tube Side
Baffle Spacing:
1.1" Baffles
Tube Side Passes:
Four Pass
Optional Zincs:
SSC-1018-1.1-6-F-Z
Materials of Construction
- Tubes: 316 Stainless Steel
- Tubesheet: 316 Stainless Steel
- Shell: 316 Stainless Steel
- End Bonnets: 316 Stainless Steel
- Finish: Painted
- Namplate: Aluminum
Rating
- Max Shell Pressure: 300 PSI
- Max Tube Side Pressure: 150 PSI
- Max Temperature: 300F
