Quotes - Engineering - SalesSSC-1760-7-6-T
Thermal Transfer Products| Product | Style | Ratings | CONFIGURATION |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300PSI/300F | Two Pass |
-Download Datasheet

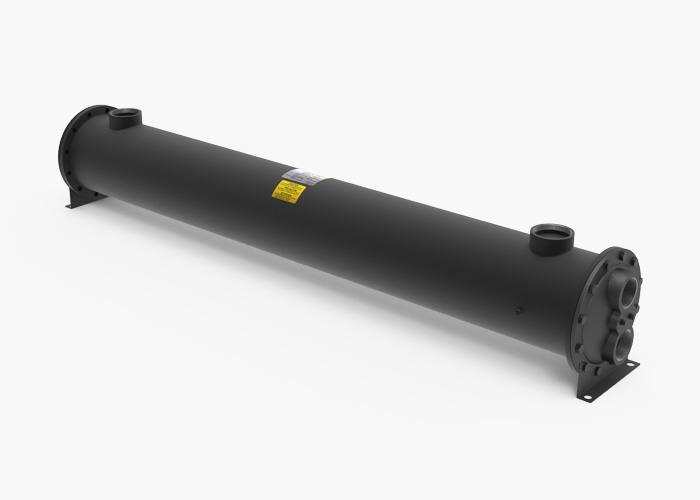

Note: Unit pictured is representative of standard unit and may not exactly depict p/n SSC-1760-7-6-T as shown on this page.
Product Overview
Part Number:
SSC-1760-7-6-T
Series:
1760
Brand:
Thermal Transfer
Configuration & Size
Size:
8" Diameter Shell x 60" Tube Length
Connection Style:
3" Shell Side / 2.5" Tube Side
Connection Type:
3" Shell Side / 2.5" Tube Side
Baffle Spacing:
7" Baffles
Tube Side Passes:
Two Pass
Optional Zincs:
SSC-1760-7-6-T-Z
Materials of Construction
- Tubes: 316 Stainless Steel
- Tubesheet: 316 Stainless Steel
- Shell: 316 Stainless Steel
- End Bonnets: 316 Stainless Steel
- Finish: Painted
- Namplate: Aluminum
Rating
- Max Shell Pressure: 300 PSI
- Max Tube Side Pressure: 150 PSI
- Max Temperature: 300F
