Quotes - Engineering - SalesUSSCV-1236-2.4-6-T
Thermal Transfer Products| Product | Style | Ratings | CONFIGURATION |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 150PSI/400F | Two Pass |
-Download
Datasheet

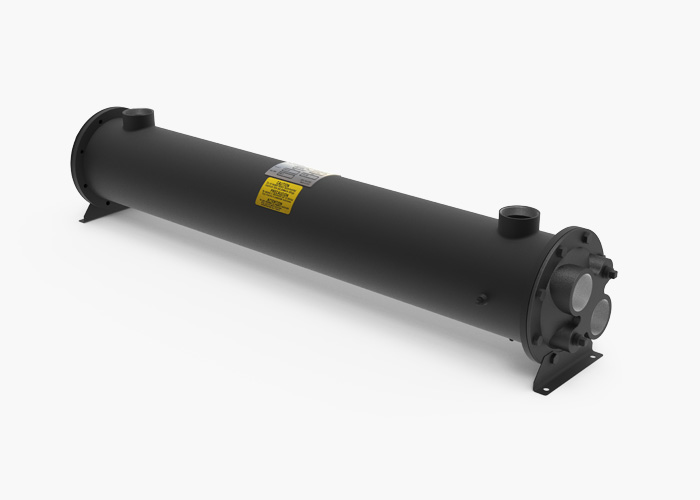

Note: Unit pictured is representative of standard unit and may not exactly depict p/n USSCV-1236-2.4-6-T as shown on this page.
Product Overview
Part Number:
USSCV-1236-2.4-6-T
Series:
USSCV-1236
Brand:
Thermal Transfer
Configuration & Size
Size:
6" Diameter Shell x 36" Tube Length
Baffle Spacing:
2.4" Baffles
Cooling Tube Diameter:
0.375" Tubing
Tube Side Passes:
Two Pass
Materials of Construction
- Tubes: 316 Stainless Steel
- Tubesheet: 316 Stainless Steel
- Shell: 316 Stainless Steel
- End Bonnets: 316 Stainless Steel
- Zincs: Optional
- Namplate: Aluminum
Rating
- Max Shell Pressure: 150 PSI
- Max Tube Side Pressure: 150 PSI
- Max Temperature: 400F
